Dali Phantom E-60

The DALI PHANTOM E-60 is a premium 6.5-inch in-ceiling speaker designed to deliver exceptional sound quality while remaining virtually invisible within your ceiling. Suitable for both dedicated home cinema installations and multi-room audio systems, the PHANTOM E-60 offers a natural, detailed sound with impressive clarity, controlled bass, and excellent vocal reproduction, making it equally at home with music, TV, and films.

Incorporating DALI’s signature wide-dispersion technology, the PHANTOM E-60 distributes sound evenly across the room, creating a larger listening sweet spot and reducing the need for precise speaker positioning. An adjustable soft dome tweeter and integrated sound tuning switches allow installers to fine-tune the speaker’s performance to suit the room acoustics, ceiling height, and listening position, ensuring the best possible audio experience in a wide range of applications.

Designed with installers in mind, the PHANTOM E-60 features a secure dog-leg mounting system that allows for quick and straightforward installation into plasterboard ceilings. The slim, magnetic grille sits flush with the ceiling surface and can be painted to match the décor, providing a clean and discreet finish that complements any interior.

Whether you’re creating an immersive Dolby Atmos® home cinema, installing a high-quality stereo system, or adding discreet background music throughout the home, the DALI PHANTOM E-60 delivers the outstanding performance, flexibility, and reliability expected from DALI’s award-winning architectural speaker range.

A FLEXIBLE ALL-ROUNDER

A great height, side or rear speaker

The PHANTOM E-60 is the perfect all-round loudspeaker. Its compact size makes it easy to install and fine-tune using the compass positioning system, but it’s still big enough to deliver a complete audio experience. Pair it for a stereo setup in a kitchen or family room or use it as a side or rear loudspeaker in a home cinema setup in a larger room. The PHANTOM E-60 is designed for in-ceiling use but can also be installed in-wall.

DESIGN DETAILS

Every detail thought through

Thick edges around the PHANTOM E-60 baffle offers tight and secure mounting and improves the overall strength and rigidity of the speaker, while the dogleg mounting system makes installation a simple one-step action. At the front, the stylish and discreet grille design helps the PHANTOM E-60 integrate into any room.

HIGH QUALITY CROSSOVER

Made from audiophile components

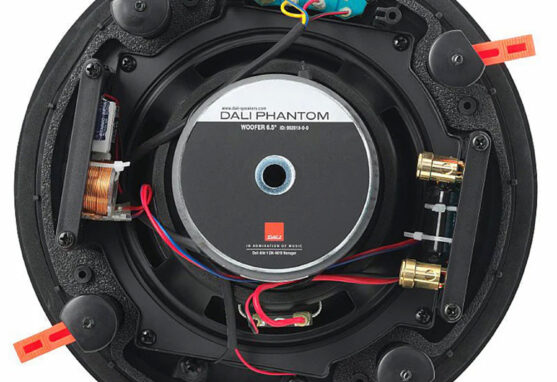

Designed specifically for the PHANTOM E-60, the crossover components have been chosen for their audiophile quality. All internal wiring is optimised for the speaker design and is secured to eliminate the possibility of rattling. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

TWEETER PLACEMENT

Creating natural high frequencies

The 25 mm soft dome tweeter module in the PHANTOM E-60 is fixed over the woofer in a composite housing mounted on an aeroplane-wing profile wishbone bracket. As well as reducing the size of the speaker, the wing design and off-centre placement of the tweeter help eliminate sound colouration normally associated with coaxial drivers. The tweeter’s positioning also helps the midrange and low frequencies blend gracefully with the high frequencies for a precise and natural overall performance, even at higher volumes.

POLYPROPYLENE WOOFER

Designed with low loss principles

To ensure the best balance between durability and great audio reproduction, the 6½” woofer features a polypropylene cone. The woofer is also tilted and angled to improve directionality and soundstaging. Every part of the woofer has been designed according to our low loss principles, so even smaller amplifiers can combine with the PHANTOM E-60 to deliver a high-quality audio experience.

WIDE DISPERSION

Easy integration in any room

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling. The PHANTOM E-60 also includes two slide switches for fine-tuning off-axis performance.
