Dali Phantom E-80

The DALI PHANTOM E-80 is a high-performance 8-inch in-ceiling speaker designed to deliver rich, detailed sound while remaining virtually invisible once installed. Perfect for larger rooms, open-plan living areas, home cinemas, and whole-home audio systems, the E-80 combines impressive bass performance with clear, natural vocals and an expansive soundstage.

Featuring DALI’s signature wide-dispersion technology, the PHANTOM E-80 provides consistent audio coverage across the room, reducing the need for precise speaker positioning. The adjustable soft dome tweeter and integrated sound tuning switches allow installers to tailor the sound to suit the room acoustics and listening environment, ensuring optimum performance whether used for stereo music, surround sound, or background audio.

Designed with both performance and ease of installation in mind, the PHANTOM E-80 incorporates a secure dog-leg mounting system for fast fitting into ceilings, while the slim magnetic grille offers a clean, discreet finish that blends seamlessly into any interior. Whether you’re creating a dedicated cinema room or a distributed audio system throughout the home, the DALI PHANTOM E-80 delivers the exceptional sound quality and reliability expected from DALI’s architectural speaker range.

BIG IN-CEILING SOUND

Designed for optimum in-ceiling use

The PHANTOM E-80 is all about big sound. Drawing on every part of its 8” woofer to fill even very large rooms with high quality sound, these in-ceiling speakers can function as the main loudspeakers in a living room stereo setup or as part of a home cinema surround system. The compact construction and the easy-to-use compass positioning system makes placing the speaker simple and accurate, while two slide switches let you fine-tune the off-axis performance, even in acoustically challenging rooms.

DESIGN DETAILS

Every detail thought through

Thick edges around the PHANTOM E-80 baffle offers tight and secure mounting and improves the overall strength and rigidity of the speaker, while the dogleg mounting system makes installation a simple one-step action. At the front, the stylish and discreet grille design helps the PHANTOM E-80 integrate perfectly into any room.

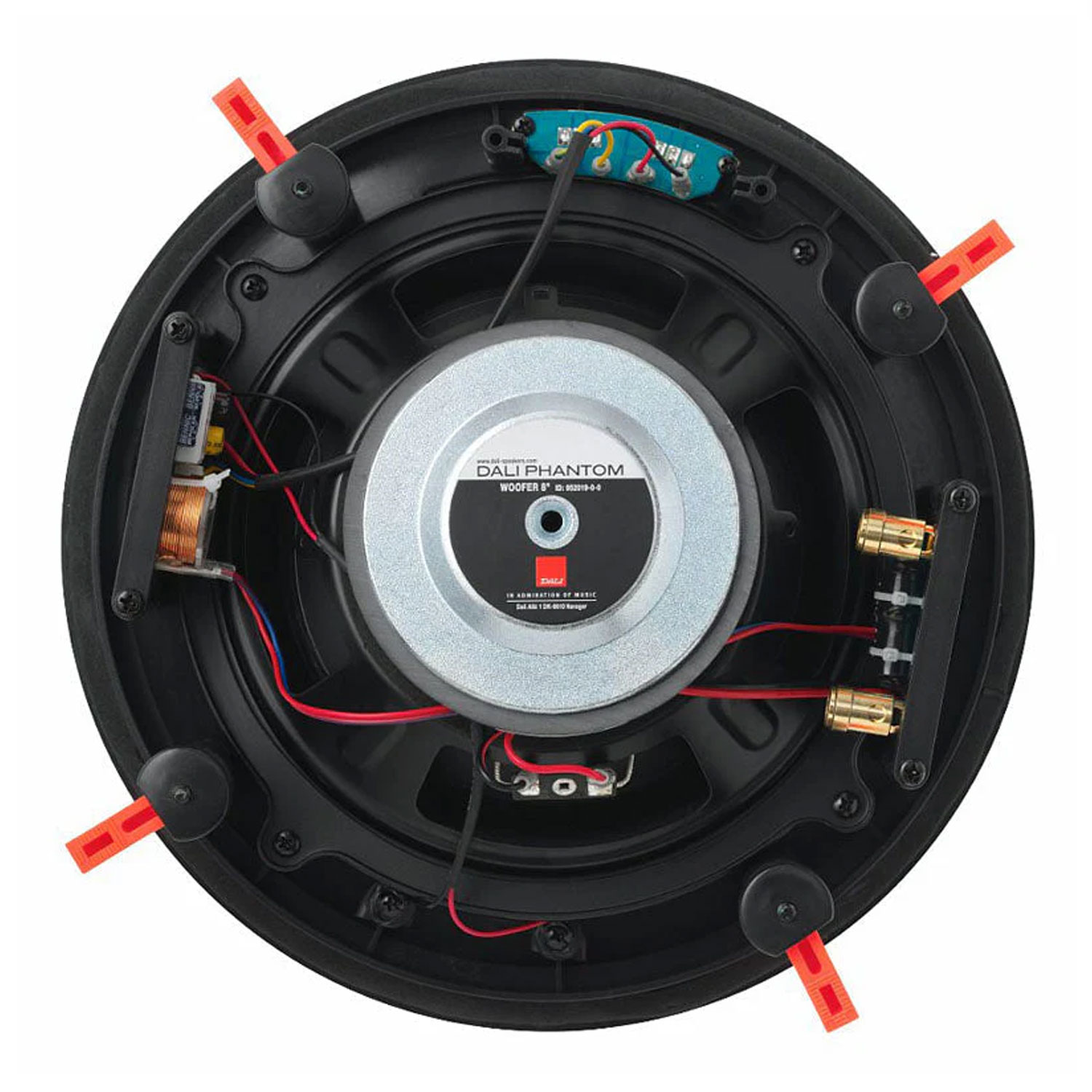

HIGH QUALITY CROSSOVER

Protecting against overheating with PPTC

The PHANTOM E-80 crossover includes a PPTC (Polymeric Positive Temperature Coefficient device) safety function. Also called a resettable fuse, the PPTC safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

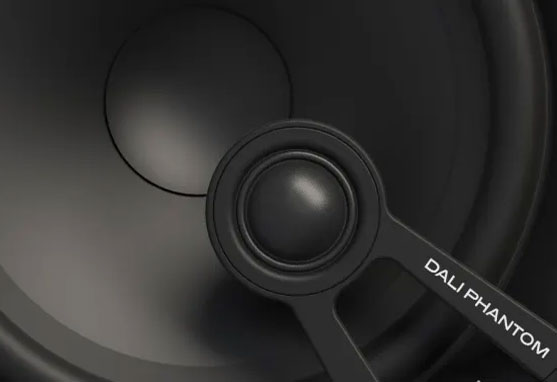

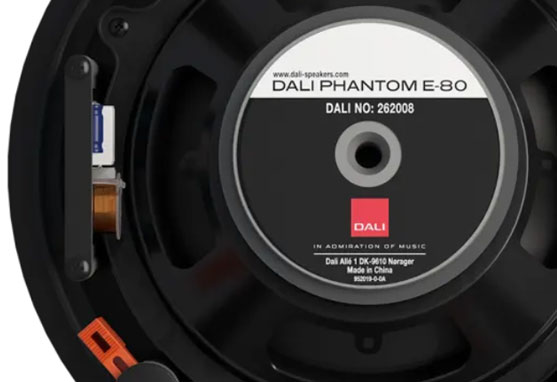

POLYPROPYLENE WOOFER

Designed with low loss principles

To ensure the best balance between durability and great audio reproduction, the 8″ woofer features a polypropylene cone that’s tilted and angled to improve directionality and soundstaging. Every part of the woofer has been designed according to our low loss principles, so even smaller amplifiers can combine with the PHANTOM E-80 to deliver a high-quality audio experience.

WIDE DISPERSION

Easy integration in any room

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling. The PHANTOM E-80 also has two slide switches for fine-tuning off-axis performance.
