Grandview Home Cinema Projector Screens

We hold one of the biggest stock of projection screens in the UK, all for next day delivery to you or to site. From 7ft manual pull downs, to 150” diagonal fixed frame acoustic designs. We even stock Tab Tensioned and in-ceiling recessed screens with motorised trap doors!

All electric screens have built in 12volt trigger, IR and RS232 control. Material is tested and approved by ISF (Imaging Science Foundation).

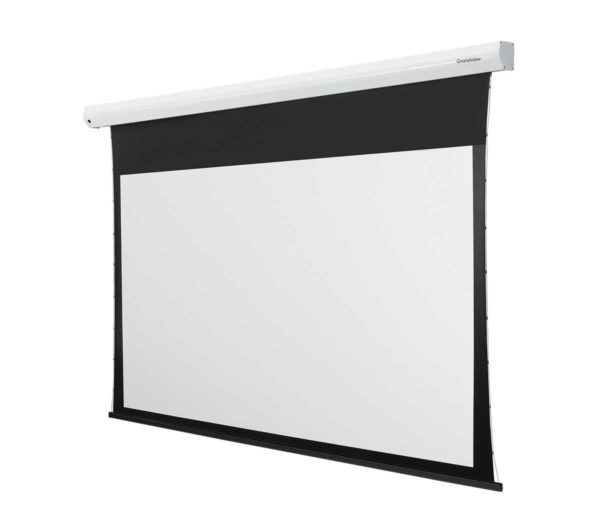

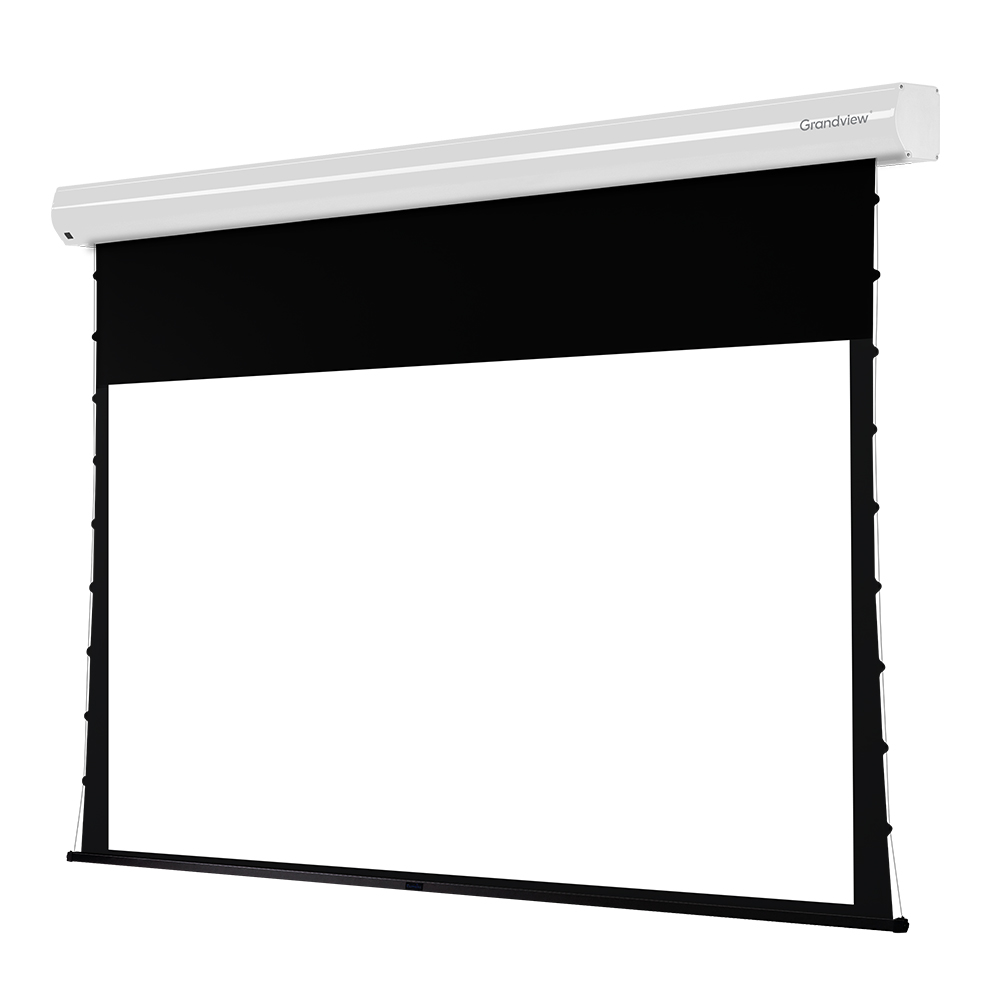

Grandview 16:9 Tab Tensioned Projector Screen

Superior Projection Screen Surface
The material on a Tab Tension screen is not only pulled down by the weight of the bar but also from the left and right side by a Nylon string. The string is periodically connected to the material via small “Tabs”, hence the name Tab Tension.

Unlike a standard screen, a Tab Tension screen has a flexible material so that it can be pulled taught from all sides. The Grandview Cyber screens have a unique ratchet mechanism at each end of weighted bar so that the tensioning strings can be easily adjusted. The US made material is optimised for home cinema use, producing a high contrast and uniform reflectivity. A black PVC backing prevents light leakage so that the screen can be positioned in front of a window.

Built in Infra-red remote control and projector trigger
All Grandview Cyber Tab Tensioned electric screens feature built in infra-red remote control and come with a simple hand held remote. The IR receiver is located on the front of the curved case but should the screen be installed behind a pelmet or recessed into the ceiling, a small external IR eye is included. Also included is a 12volt trigger input, this allows the screen to be activated from any projector or surround sound amp with a 12volt output. A 10m mono mini jack cable is supplied to connect the screen to a 12volt output device.

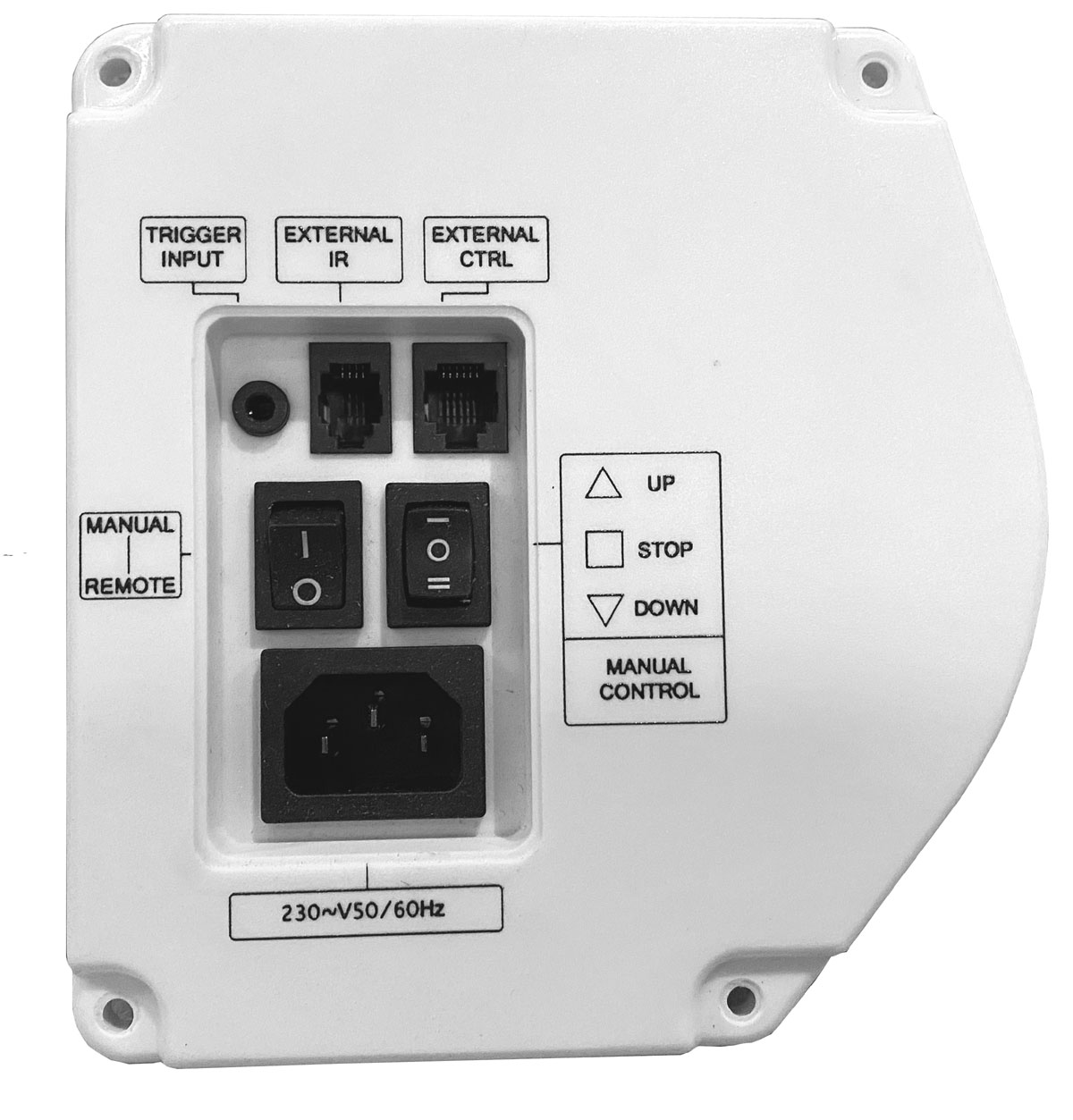

Optional End Cap
Grandview now offer an IP control option for the electric and tab tensioned screens. The electronics in the end cap will also allow the screen to be operated via infra red and closed contact operation. This is an additional cost which should be ordered in advance.

Case and Motor Design
The aluminium diamond white case has an elegant curved profile making it one of the nicest looking screens on the market. The rigid sturdy design keeps the internal roller perfectly straight and any motor noise to a minimum. The Grandview Cyber series projector screens all use SOMFY motors, the same motors found in the likes of Dalite and Stuart cinema screens.

Mounting Bracket
Grandview Cyber projection screens feature one of the best mounting systems on the market. Two small brackets fit to the wall or ceiling anywhere along the length of the case. Once the screen is clipped into the brackets a retaining bolt secures it in position. The screen can only be lifted off the brackets when the bolt is released.

Other features and measurements
Just like televisions, projector screens are measured in imperial feet and inches. The screen is measured by the width of the material from left to right. The standard sizes are 6ft, 7ft, 8ft and 9ft. The viewable area is the white part of the screen which is slightly smaller due to the surrounding black borders. The Grandview Cyber screens 6-9ft top black border can be adjusted from 0 to 20″/50cm to give the desired screen position. The 10ft has a 25cm black border which can be adjusted.

Motor Adjustments
How to adjust Type A motor for standard surface and in-ceiling screens up to and including 138″.
Tab tensioned surface and in-ceiling screens upto 120″ (Motor Code AACW) – Click Here

How to adjust Type L motor for standard surface and in-ceiling screens above but not including 138″.
Tab tensioned surface and in-ceiling screens above and not including 120″ (Motor Code ALCW) – Click Here

Old Somy motor Labeled ASCW – Click Here

All the above screens come in a white case and in a 16:9 format

Click here to download the instructions

Size	Viewable Area	Diagonal	Case Size MM
6ft Wide	1704 x 960mm	77"	2165 x 145 x 137
7ft Wide	2037 x 1146mm	92"	2490 x 145 x 137
7.5ft Wide	2214 x 1245mm	100"	2672 x 145 x 137
8ft Wide	2346 x 1320mm	106"	2804 x 145 x 137
9ft Wide	2656 x 1494mm	120"	3114 x 145 x 137
10ft Wide	3055 x 1718mm	138"	3512 x 145 x 137
