Pulse Eight Key Features

In a world of mass-produced AV equipment, Pulse Eight stands out from the crowd by manufacturing every Pulse-Eight product ourselves, all from their head office in Poole, Great Britain.

Utilising a carefully selected team of passionate engineering and manufacturing staff, who are at the top of the HDBaseT and Video distribution industry, means that all products have been designed and built to the very best standard. But that’s not all. Check out why you should choose Pulse-Eight below.

Pulse Eight - neo: Pro HDMI Extneder Set

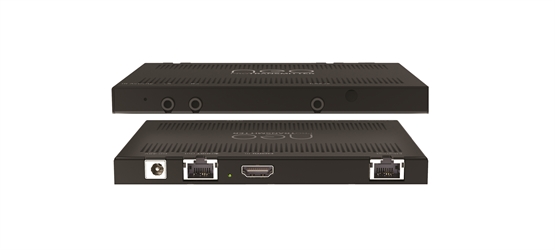

Pulse Eight Pro HDMI Extender Set

Our mid-range HDMI Extender supports High Dynamic Range (HDR) with BT.709 colourspace, PoH (Power over HDBaseT), bi-directional IR signals.

Transmitter Inputs: 1 x HDMI
Transmitter Outputs: 1 x HDBaseT Class C
Receiver Inputs: 1 x HDBaseT Class C
Receiver Outputs: 1 x HDMI
Max HDBaseT Cable Distance 4K: 70 metres
Max HDBaseT Cable Distance 1080p: 100 metres
HDBaseT Recommended Cable: Cat5e or greater
Colour Supported: 4K: 8bit, 1080p: 12 bit
Colour Depth: Upto 36 bit (3 x 12 bit)
TMDS Clock Speed: 340 Mhz
Max Bandwidth: 10.2 Gbps
Encryption: HDCP 1.4 and HDCP 2.2
PoH: neo:Pro PoH Receiver
Infrared: Bi-Directional
CEC Control: Full
ARC (Audio Return Channel): No
DSC (Display Stream Compression: No
Ethernet Pass-through: Yes
Wall Mountable: Yes – bracket sold separately
Power Supply: 1 x 48V @ 0.5A (Transmitter only)
Power Consumption: Transmitter: 7.3W / Receiver: 8W
Material: Aluminium
Product Dimensions: 14.8 x 1.3 x 10.5cm each
Product Weight: 0.16kg each
Operating Temp Range: 0 to +35 degrees (32 to 95 Fahrenheit)
Operating Humidity Range: 20 to 90% RH (no condensation)
Manufactured In: Great Britain by Pulse Eight

Key Technologies

Kit Includes: neo: Pro Transmitter | neo:Pro PoH Receiver | Country Specific Power Supply | Infrared Blaster Cable Pack | Installation Guide
