Key Features:
- Amplifier
– 2.0 CH Class-D digital amplifier
– Max Power: 100 W/channel (8 ohms), 200 W/channel (4 ohms) – Terminating Impedance: 2.67~8 Ohms
– Built-in DAC: ESS ES9039Q2M
– Amplifier Chip: TI TPA3255
– Operational Amplifier: TI OPA1611 - Audio Input
– Analog (RCA), or digital (Optical, Coaxial) ports supporting up to 24-bit/192kHz. – Anti-pop noise design for variable sample rates and bit-depth
Read more

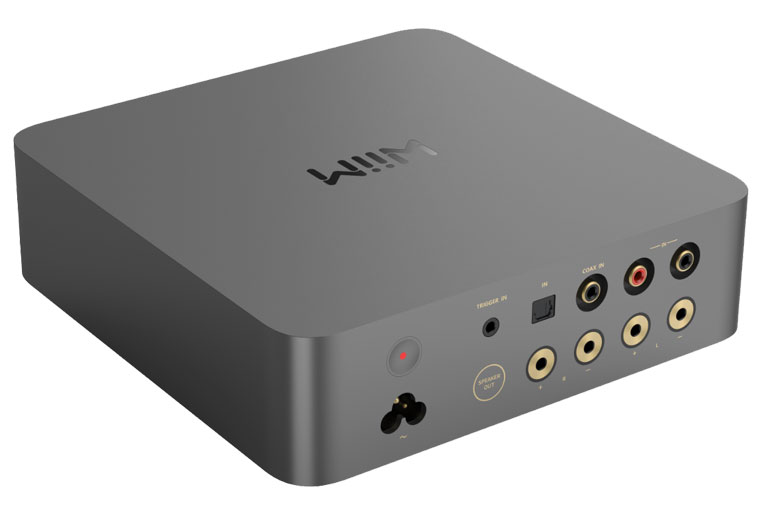

- Audio Output
Stereo Banana Plugs
. – SNR: 120 dB (A-weighted)
– THD+N: -105 dB (0.0005%) - Power Adaptor
– A100~240V AC, 4.5A Max - Other Features
– Premium Build Quality: Aluminum oxide casing, innovative heat dissipation technology.
– Adaptable Digital Input: Seamlessly manage variable sample rates and bit depths to prevent audio pops.
– 12 V Trigger: Activate/deactivate your amplifier instantly, offering quick activation and energy-saving standby mode. - Physical
– Dimensions: 7.9 x 7.9 x 2.58 inches (200 x 200 x 63 mm).

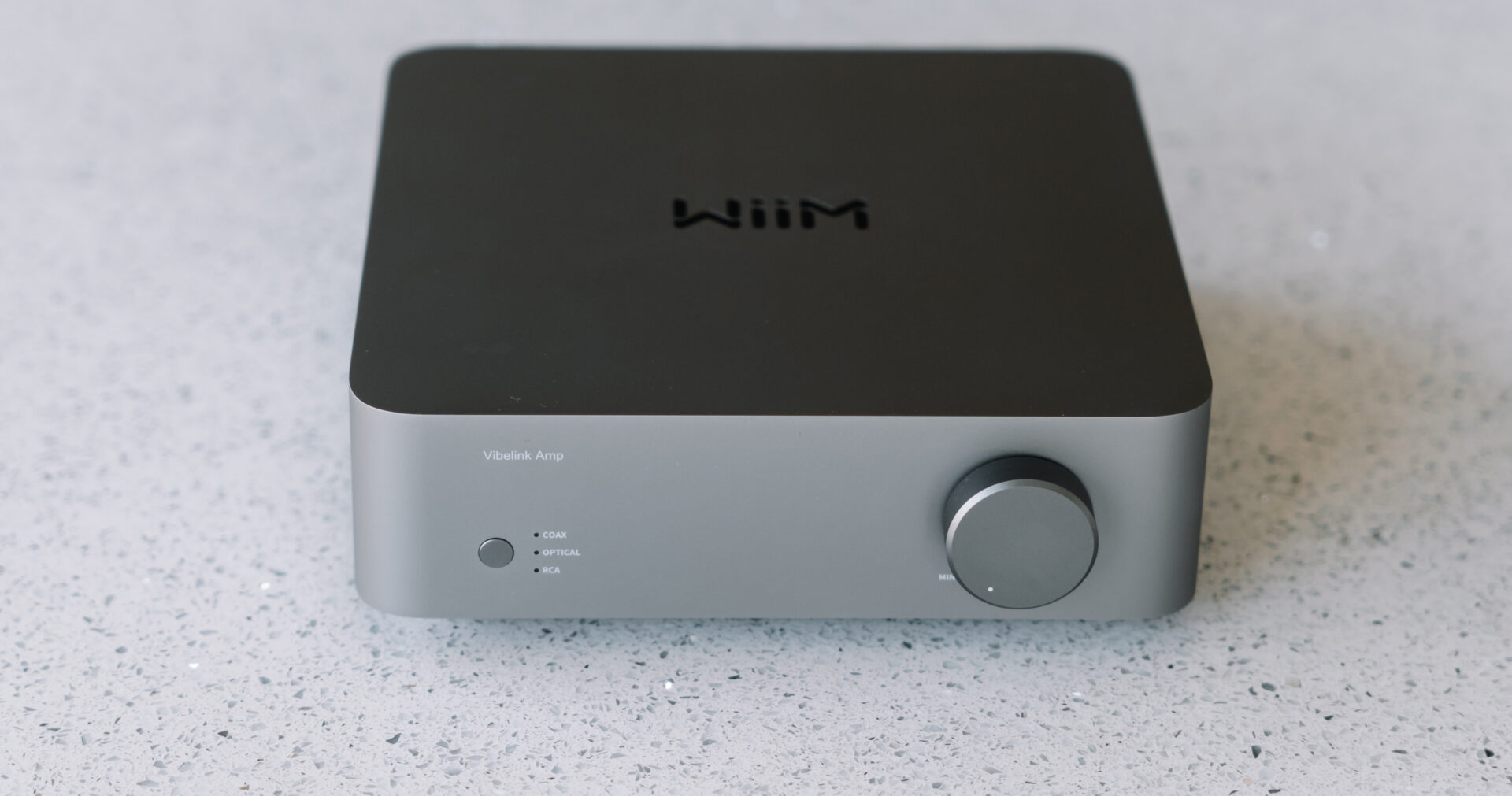

– LED: 3-color LED indicates status and source

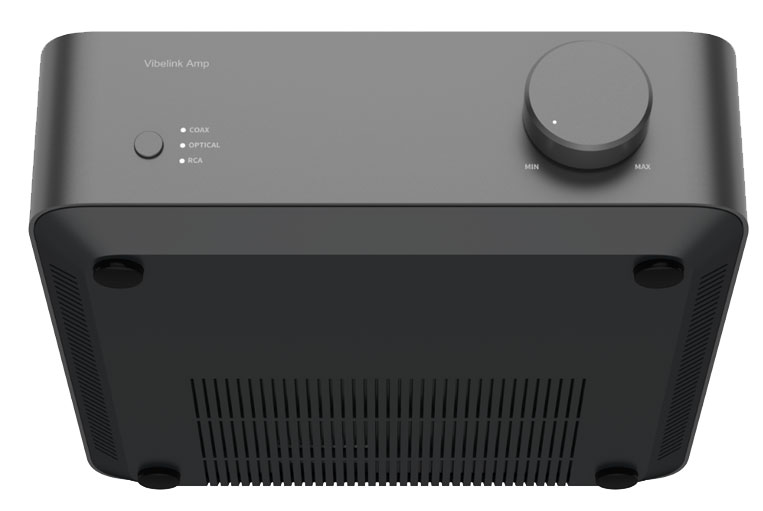

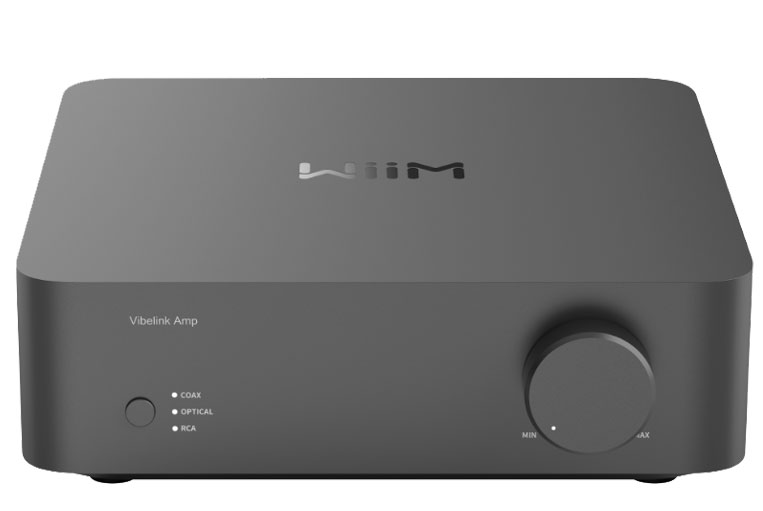

– Buttons:
▪ Volume knob with Min/Max indication
▪ Press button for switching sources
Premium Audio Quality
Boasting 100W per-channel into 8Ω speakers (200W @ 4Ω), this two-channel Class-D integrated amplifier provides room-filling sound, capable of handling complex soundscapes and details without distortion.

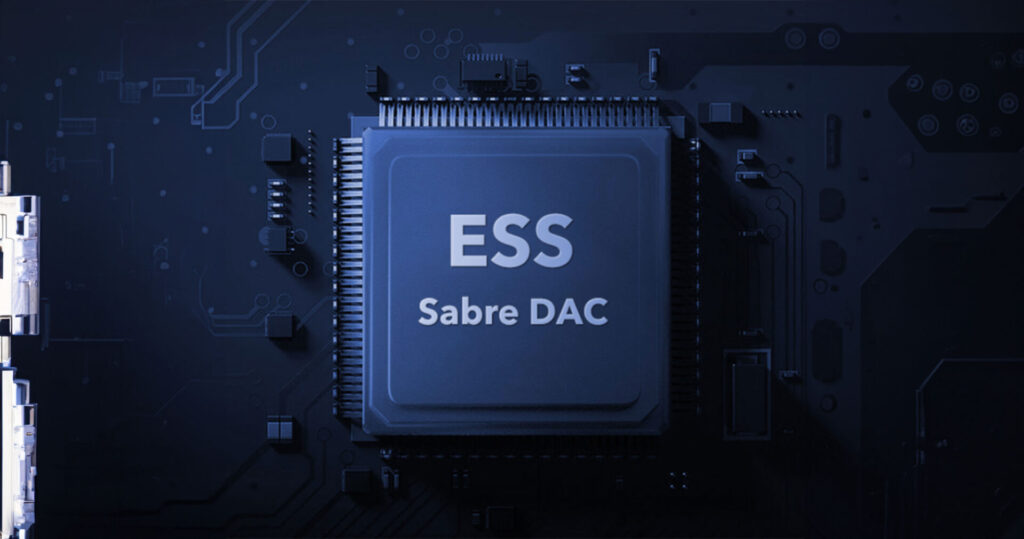

Pure Hi-Res Audio with Premium DAC
Featuring a premium built-in ESS ES9039Q2M DAC, the Vibelink Amp ensures the highest fidelity from your digital sources, dynamically supporting variable sample rates and bit depths for optimal sound. It also handles analogue inputs with ease, offering a versatile solution for any audio setup. All built around the proven TI TPA3255 Amp Chip, the resulting clean, rich sound brings out the nuances of every note – ideal for audio enthusiasts who appreciate lifelike, studio-quality sound.
Flexible Options for Seamless Integration

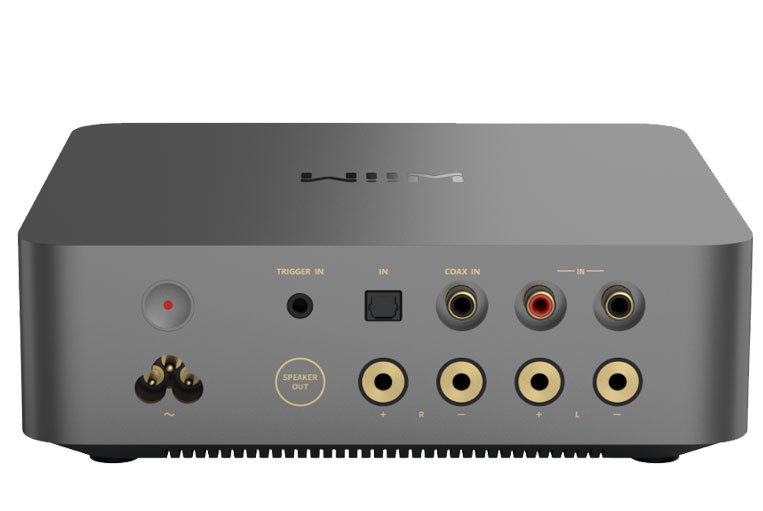

Having both analogue (RCA) and digital (Optical, Coaxial) inputs allow users to connect with a range of audio sources, from classic turntables to the latest streaming devices, offering an upgrade on the sound achieved by many built-in DACs.
Smooth, Uninterrupted Listening Experience
The anti-pop noise design prevents sound interruptions when switching inputs or adjusting settings. Achieved through hardware optimisations like ramping circuits and software sequencing, ensuring no pop noise even when audio resolution changes. “Pop” noise is where many existing power amplifiers suffer.

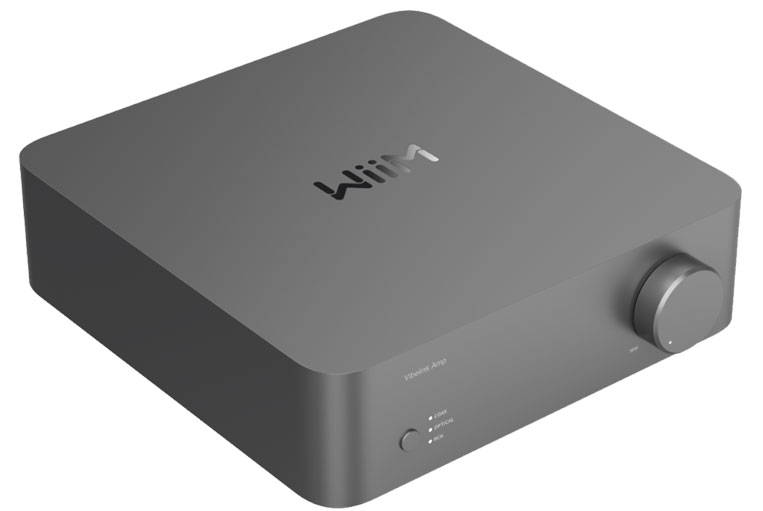

Built-to-Last

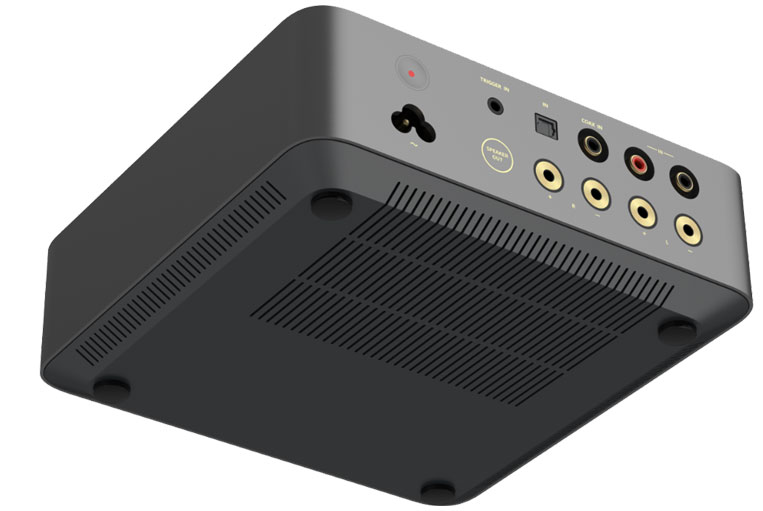

Specially designed with copper heat pipes, a large aluminium heatsink, and a heat-spreading case to reduce hot spots and effectively manage the internally generated heat, the Vibelink Amp also features PID-based thermal management software to ensure optimal temperature regulation.
The quality of the overall design then passes through to the sturdy connectors and on to the aluminium oxide casing, which both supports the heat management system and looks elegant in any modern environment.
The WiiM Standard

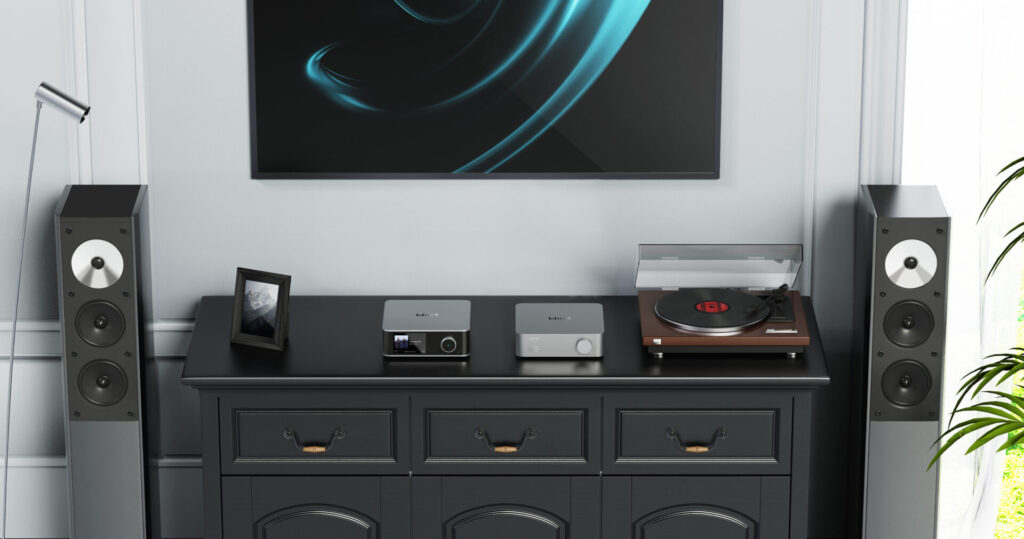

The compact form factor of the Vibelink Amp is another shining example of how WiiM make products to support the modern listener’s needs. This state-of-the-art amplifier delivers exceptional audio performance with both digital and analogue inputs, offering versatility for any setup. Engineered for seamless integration into the WiiM ecosystem, it pairs effortlessly with all WiiM streamers – including the WiiM Ultra, which shares the same compact design for easy stacking, as well as the Pro Plus, Pro, and Mini – to deliver outstanding multi-room audio.
The WiiM Standard – Seamless, Audiophile-Grade Sound
Designed for those who love streaming but don’t need a Wi-Fi-connected amp, the Vibelink Amp ensures high-fidelity sound, broad compatibility, and effortless integration. Whether you’re enhancing a vintage setup or building a modern audio system, this amplifier delivers uncompromised performance at an unbeatable value.
| Technical Specifications | |
|---|---|
| Amplifier Class | Class-D digital amplifier. |
| Power Output (4Ω) | 200 Watts |
| Power Output (8Ω) | 100 Watts |
| Signal To Noise Ratio | 120 dB |
| THD +N | (-105db) 0.0005 % |
| RCA Input(s) | Y |
| Optical Input(s) | 1 |
| Coaxial Input(s) | 1 |
| DAC Chip | ES9039Q2M |
| Dimensions (W x H x D) | 200 x 200 x 63 mm |
| Weight | 2.05 kg |
