Grandview Home Cinema Projector Screens

We hold one of the biggest stock of projection screens in the UK, all for next day delivery to you or to site. From 7ft manual pull downs, to 150” diagonal fixed frame acoustic designs. We even stock Tab Tensioned and in-ceiling recessed screens with motorised trap doors!

All electric screens have built in 12volt trigger, IR and RS232 control. Material is tested and approved by ISF (Imaging Science Foundation).

Grandview Projector Screens

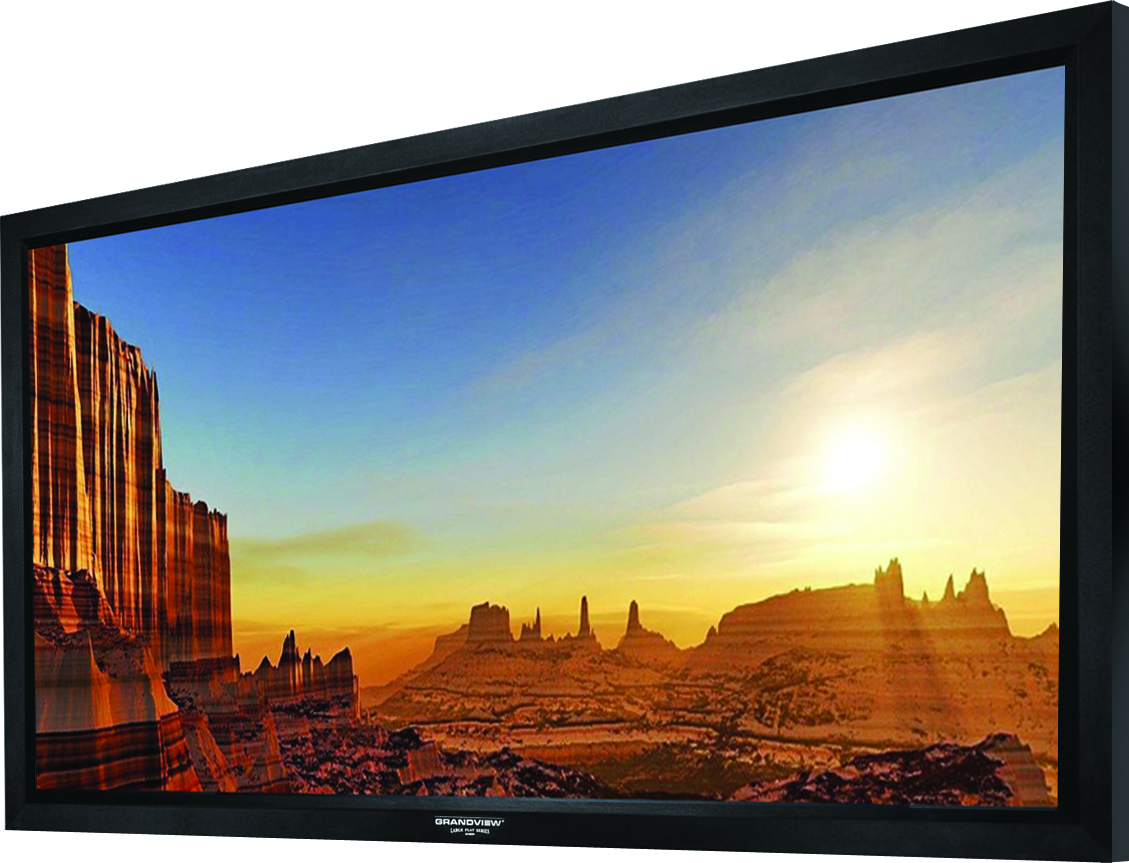

Grandview 16:9 Fixed Frame Screen

Grandview Fixed Frame Screens
The Grandview series of fixed frame Projection screens offer the ultimate in uniformally flat projection surface. Ideal for permanent more dedicated cinema rooms, the fixed frame screen gives a true cinematic experience.

High Tensioned Surface
The multiply vinyl projection screen material is kept under high tension by a unique means found only in Grandview products. Steel bars are inserted into a looped seem that runs round the edge of the material. The bars are then fixed into the aluminium frame, causing the material to be pulled evenly from all four sides.

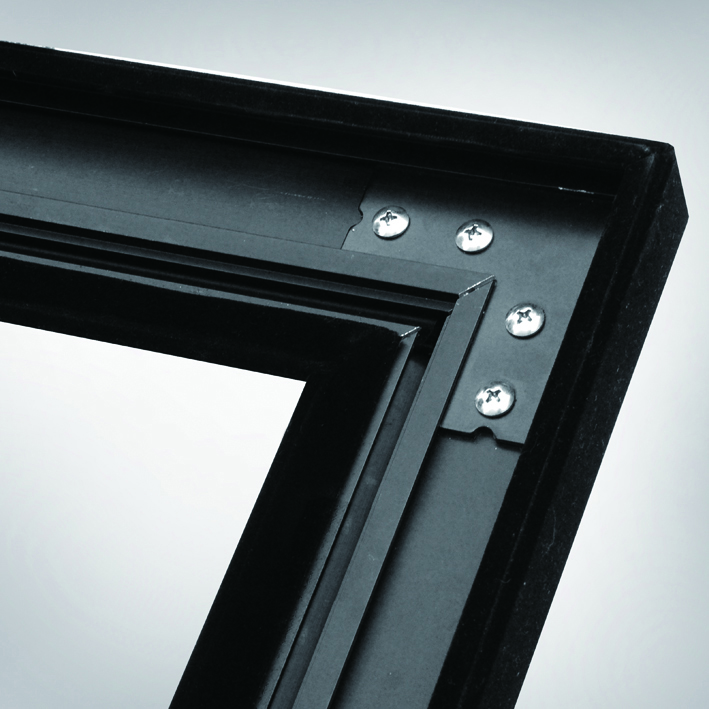

Frame Design
The super rigid frame is of curved cast aluminium with a black velvet finish that absorbs any stray light from an overlapping picture. The frame secured to the wall via two long aluminium brackets that allow the screen to slide from left to right making it easy to perfectly centre to the room.

Material
The most important aspect of any screen is its ability to bounce the correct amount of light back at the audience without altering colour reproduction and contrast ratios. Grandview fixed screens use fine diamond shaped pitted material that helps to cancel stray light and keep picture reproduction as accurate as possible. The material has a low gain rating of 1.1, keeping contrast levels high and offering a wide even viewing angle. A black PVC backing means the screen can be mounted in front of any light source without any light leakage.

Other features and measurements
Just like televisions, projector screens are measured in imperial feet and inches. The screen is measured by the width of the material from left to right. The standard sizes are 6ft, 7ft, 8ft,and 9ft. The viewable area is the white part of the screen which is slightly smaller due to the surrounding black borders.

Size Viewable Area Diagonal Case Size MM Dimensions
6ft Wide 1704 x 958mm 77" 1869 x 1120 x 35 acrobat-icon
7ft Wide 2030 x 1145mm 92" 2198 x 1307 x 35 acrobat-icon
8ft Wide 2340 x 1320mm 106" 2508 x 1481 x 35 acrobat-icon
9ft Wide 2656 x 1494mm 120" 2818 x 1656 x 35 acrobat-icon
10ft Wide 3055 x 1718mm 138" 3215 x 1878 x 35 acrobat-icon
11ft Wide 3320 x 1867mm 150" 3520 x 2067 x 40 acrobat-icon

All Grandview Cyber Fixed Frame Screens come with a black velvet surrounding
