Speakercraft Aim Series Inceiling Speakers

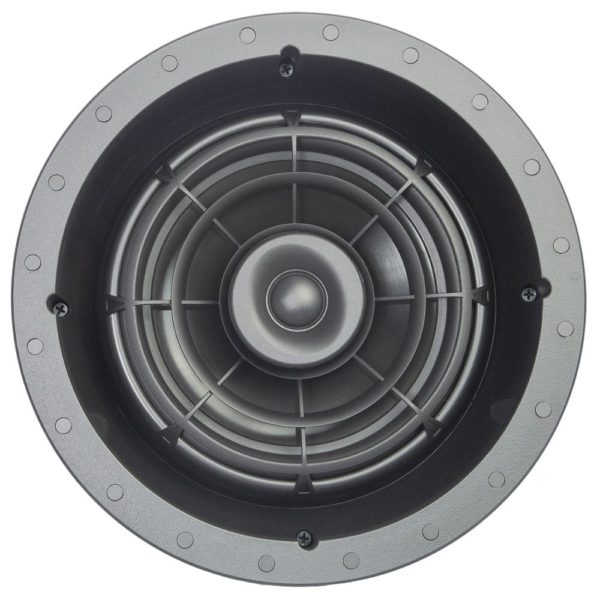

Speakercraft Profile Aim7 Three

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.

Woofer Size 7 Inches
Woofer Construction Pivoting and Rotating 7" Aluminum Cone Woofer
Tweeter Pivoting 1" Aluminum Dome Tweeter
Frequency Response 40Hz-20kHz
Impedance Adjustable 8/6/4 (Ohms)
Power Handling 125 (Watts)
Timbre Timbre-Matched to All Three Series Speakers
Sensitivity 91 dB
Switches Front-Mounted Bass & Treble Equalization Switches
Dimensions 251 mm Diameter x 130 mm Depth with Grille
Cutout Dimensions 210 mm Diameter
Speakercraft Steel Enclosure

Steel Enclosure Back Box

SpeakerCraft SE1410-6-RSE
REF: ASM90508
SPECIFICATIONS
* Deep Round In-Ceiling Sound Enclosure providing the safety and protection of a one-hour fire break
* Fits All AIM7, CRS6 & 6″ WHA Models
* Provides up to 10dB of sound suppression between adjacent rooms
* Install easily between studs or joists
* Fire Rated According to UL Standard ASTM E119
* Dimensions: H=356mm W=254mm D=146mm
