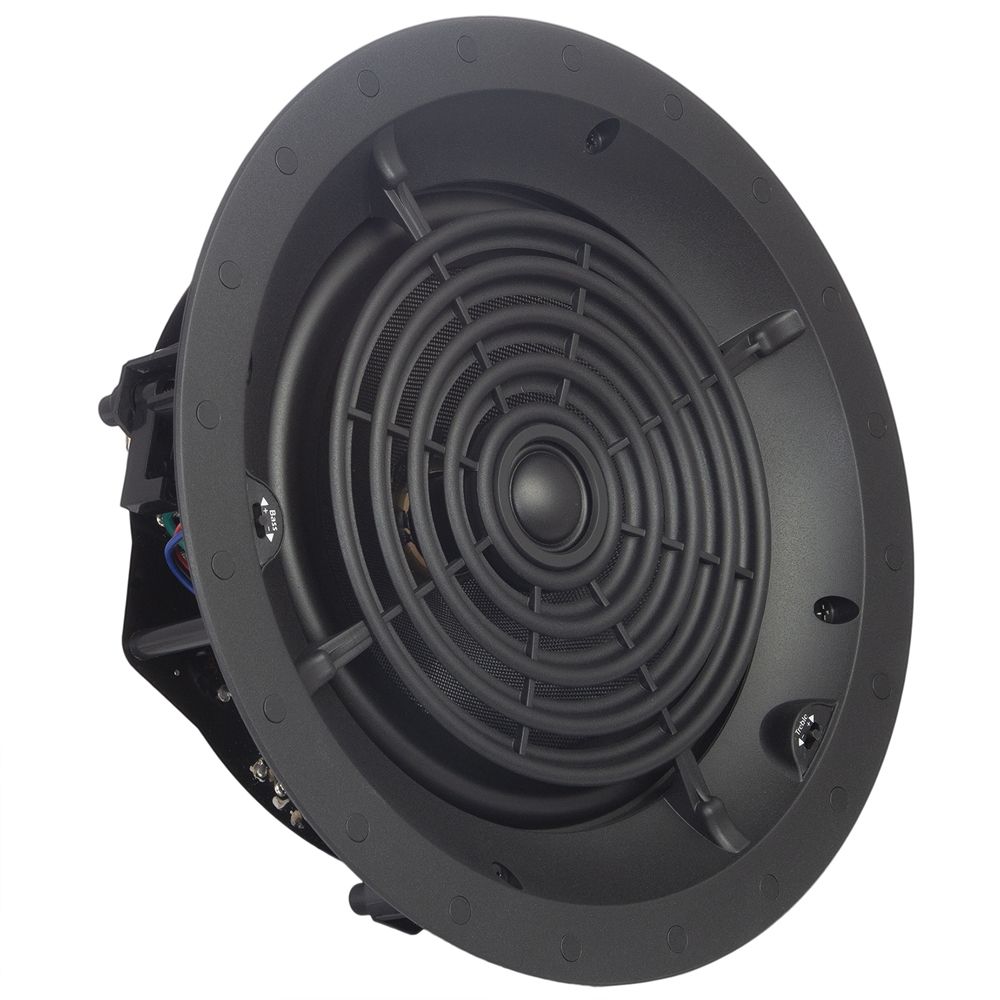

Woofer Size | 8 Inches |
Woofer Construction | Glass Composite Cone Woofer |
Tweeter | Pivoting 1" Silk Dome Tweeter |
Frequency Response | 40Hz-20kHz |
Impedance | 8 (Ohms) |
Switches | Front-Mounted Switch Allows for up to ±3dB of Bass and Treble Adjustment |
Power Handling | 100 (Watts) |
Timbre | Timbre-Matched to All Two Series Speakers |
Sensitivity | 90 dB |
Dimensions | 303 mm Diameter x 114 mm Depth with Grille |
Cutout Dimensions | 248 mm Diameter |
Steel Enclosure Back Box
SpeakerCraft SE1410-AIM Wide
REF: ASM70800
* Deep Round In-Ceiling Sound Enclosure providing the safety and protection of a one-hour fire break
* Fits All 8″AIM, 8″CRS, 8″DT, and 8.1 & 8.2 BAS, AIM Wide
* Provides up to 10dB of sound suppression between adjacent rooms
* Install easily between studs or joists
* Fire Rated According to UL Standard ASTM E119
* Dimensions: H=356mm W=254mm D=219mm
