Grandview 16:9 Fixed Frame Acoustic Screen

Grandview Cyber Woven Series Fixed Frame Screens
Grandview is a Canadian screen manufacturer leading the field in commercial cinema screens in Canada and the USA. Grandview’s new Cyber series screens, allows the home cinema enthusiast to afford the quality screen modern HD cinema projectors deserve. The fixed frame Projection screens offer the ultimate in uniformally flat projection surface. Ideal for permanent more dedicated cinema rooms, the fixed frame screen gives a true cinematic experience.

High Tensioned Surface

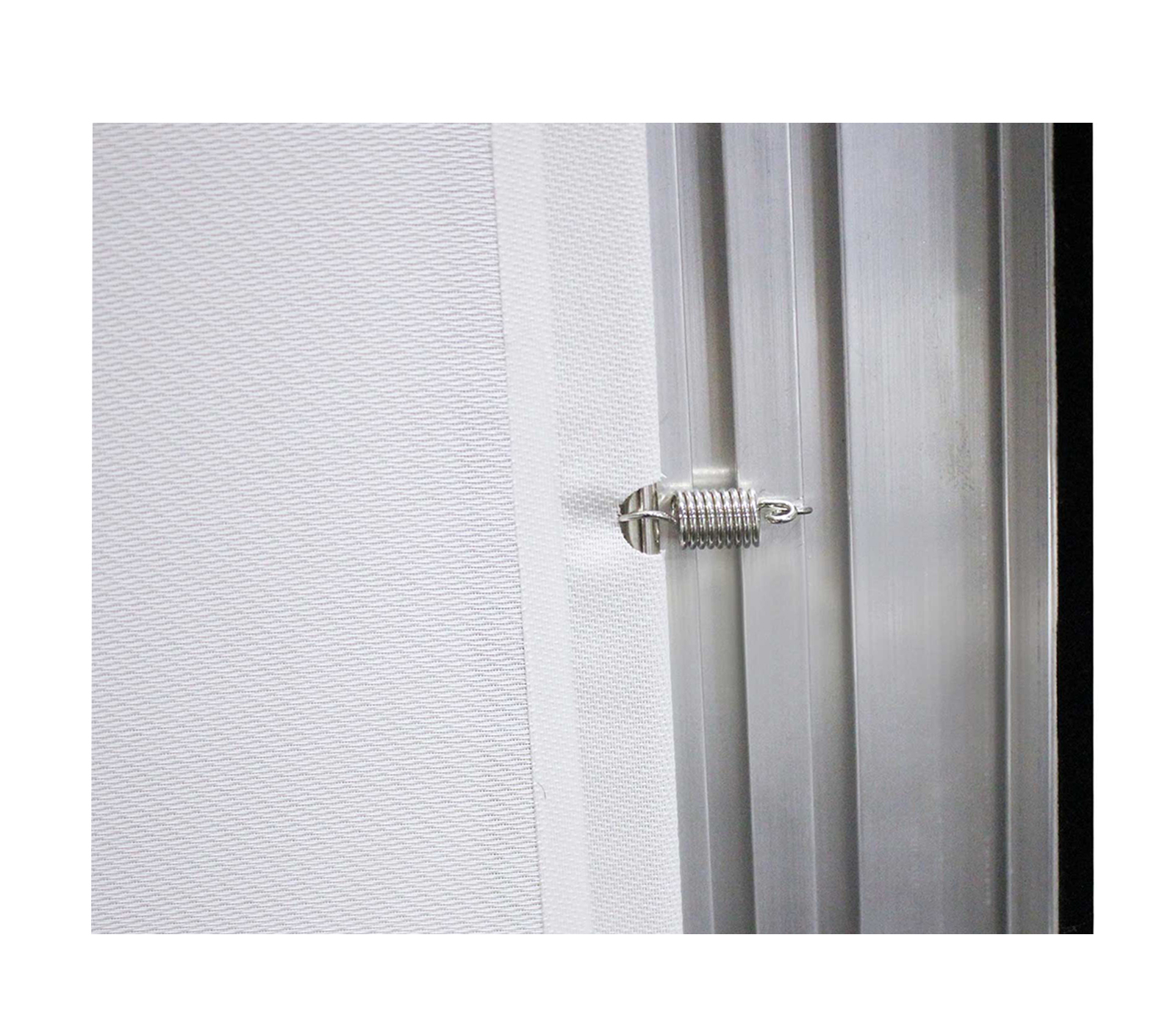

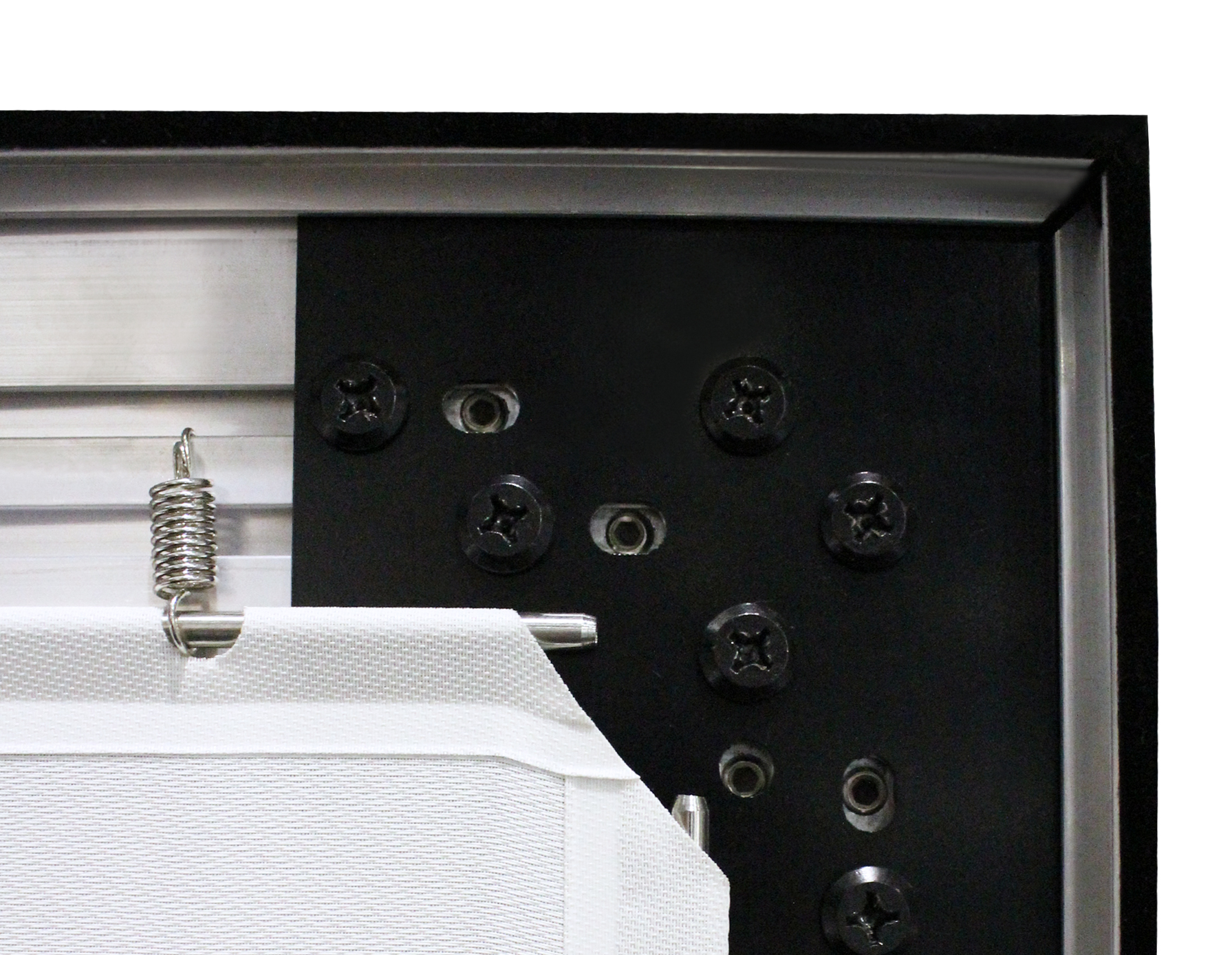

The multiply vinyl projection screen material is kept under high tension by a unique means found only in Grandview products. Steel bars are inserted into a looped seem that runs round the edge of the material. The bars are then fixed into the aluminium frame, causing the material to be pulled evenly from all four sides.

Frame Design

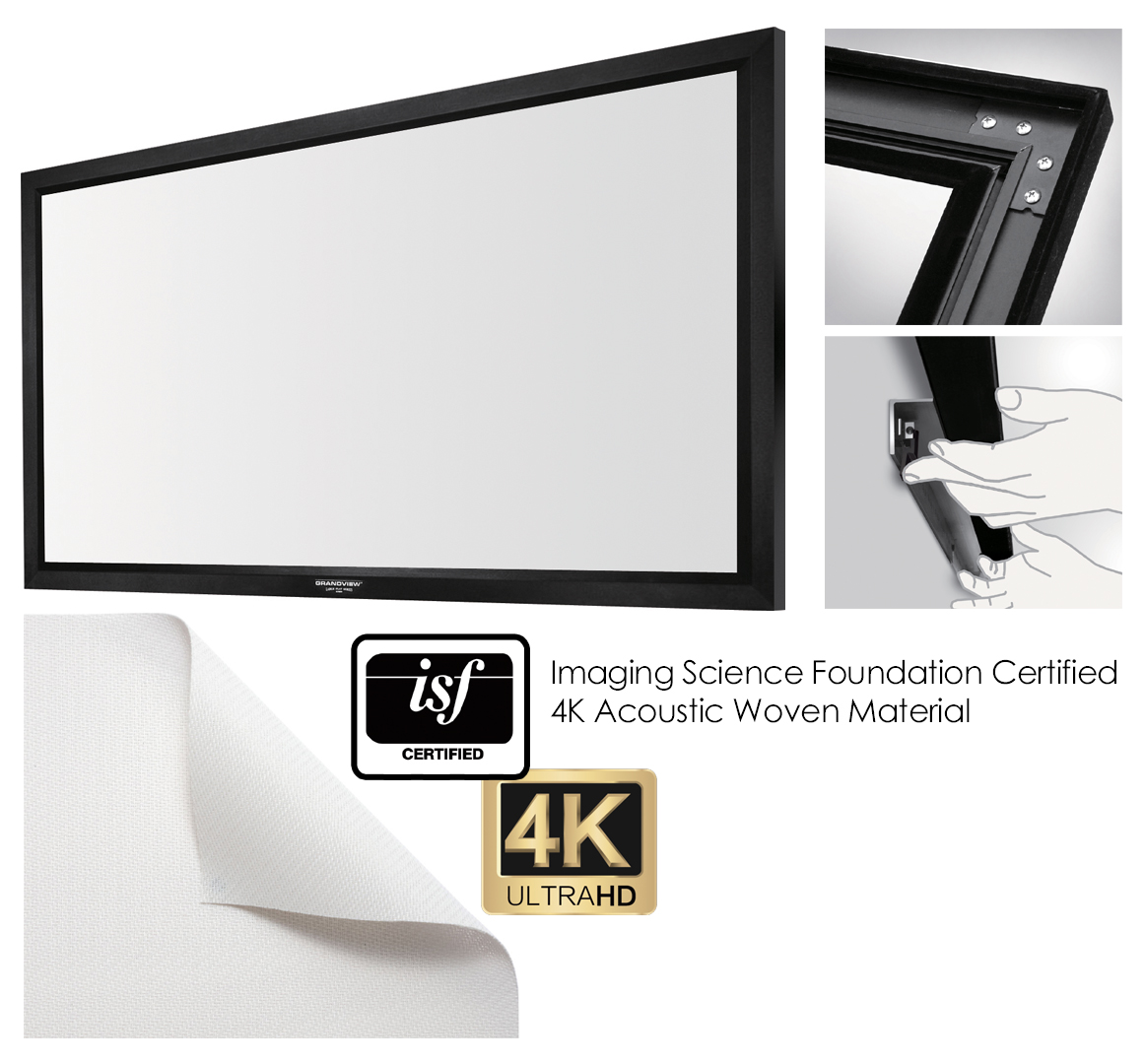

The super rigid frame is of curved cast aluminium with a black velvet finish that absorbs any stray light from an overlapping picture. The frame secured to the wall via two long aluminium brackets that allow the screen to slide from left to right making it easy to perfectly centre to the room.

Material

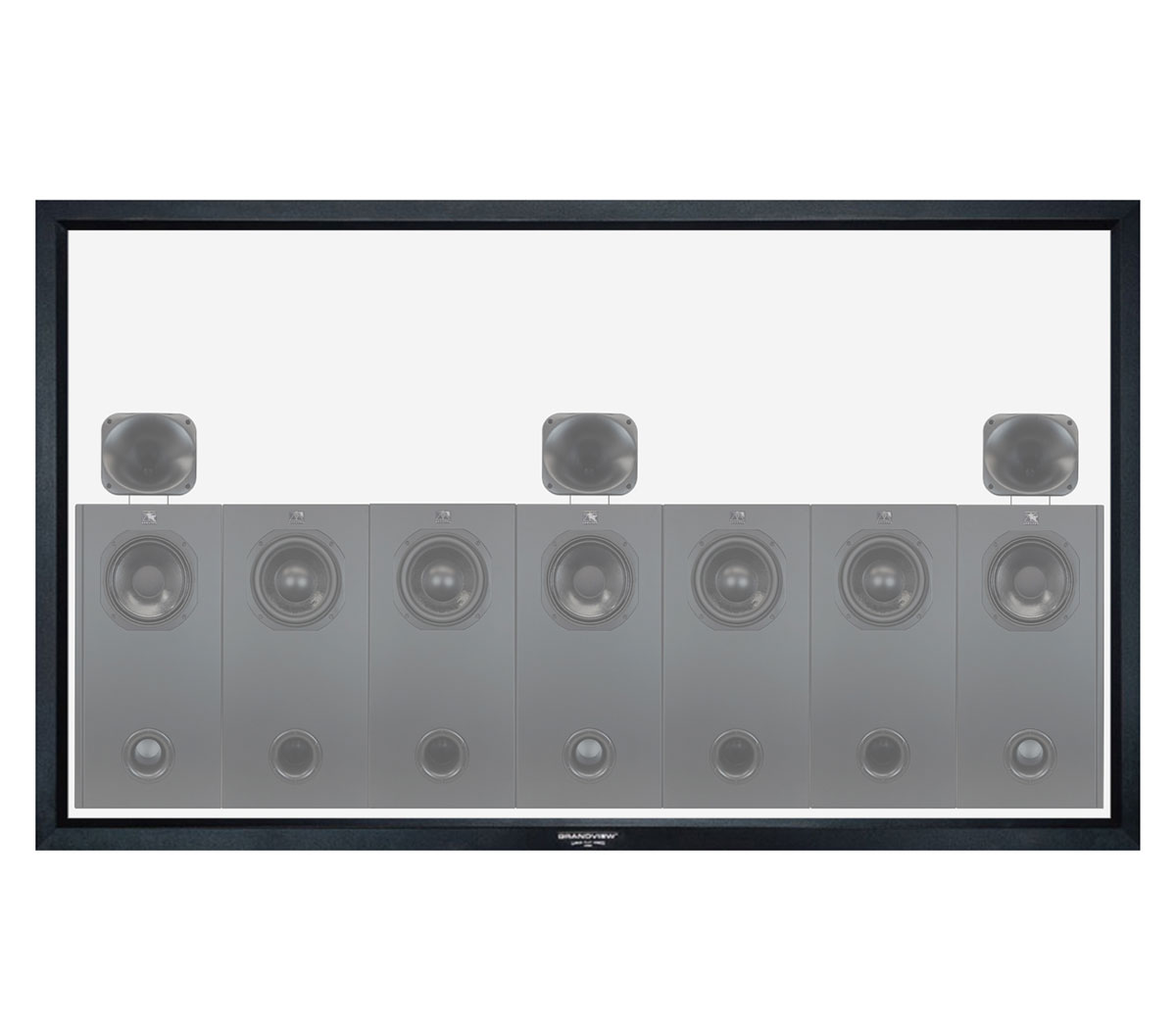

The acoustic woven screen material used by Grandview is a similar design used in commercial cinema screens. The material allows sound from rear mounted loudspeakers to pass through with the minimum of acoustic loss while retaining accurate colour saturation and contrast ratio. The material has a low gain rating of 1.1, keeping contrast levels high and offering a wide even viewing angle.

Other features and measurements
Just like televisions, projector screens are measured in imperial feet and inches. The screen is measured by the width of the material from left to right. The standard sizes are 6ft, 7ft, 8ft,and 9ft. The viewable area is the white part of the screen which is slightly smaller due to the surrounding black borders.

Size Viewable Area Diagonal Case Size MM Dimensions
6ft Wide 1707 x 958mm 77" 1869 x 1120 x 35 acrobat-icon
7ft Wide 2030 x 1145mm 92" 2199 x 1307 x 35 acrobat-icon
8ft Wide 2346 x 1320mm 106" 2508 x 1481 x 35 acrobat-icon
9ft Wide 2656 x 1494mm 120" 2818 x 1656 x 35 acrobat-icon
10ft Wide 3055 x 1718mm 138" 3215 x 1878 x 35 acrobat-icon

All Grandview Cyber Fixed Frame Screens come with a black velvet surrounding

Click here for instructions on the Fixed Frame Projector Screens
