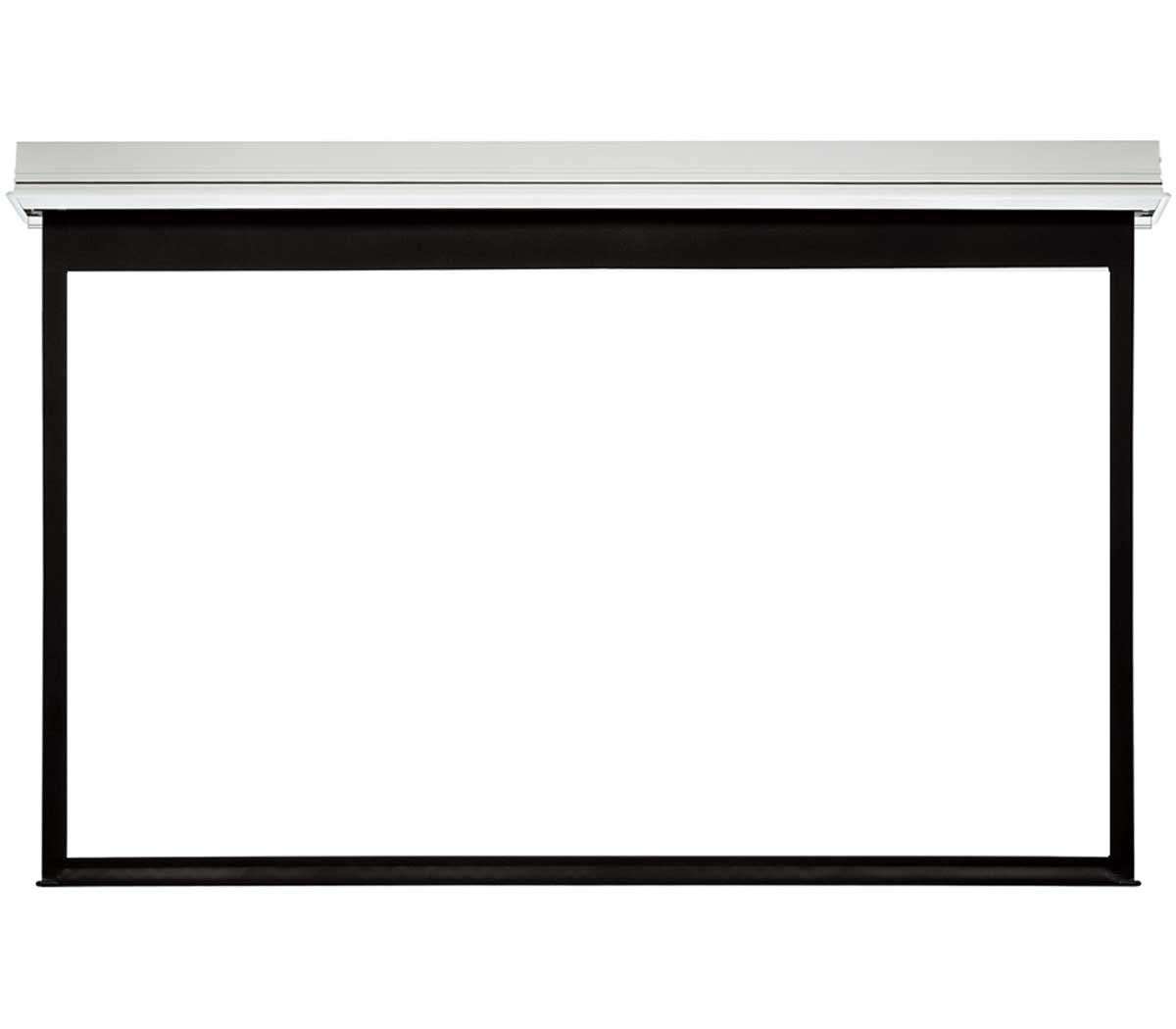

Grandview 16:9 Inceiling Electric Projector Screen

The Grandview Cyber series In-ceiling screen uses the same quality material and also features the IR remote and 12volt trigger of the standard surface mount screens. The unusually quiet operation is due to the unique way that the motor section of the housing is separated from the ceiling section of the housing by a rubber seal. This stops any vibration travelling through into the ceiling void, amplifying the sound. An issue found with other In-ceiling designs. This along with the trap door mechanism makes this screen the perfect discreet option for projection.

Built in Infra-Red Remote Control and Projector Trigger
All Grandview Cyber electric screens feature built in infra-red remote control and come with a simple hand held remote. The IR receiver is located on the front of the curved case but should the screen be installed behind a pelmet or recessed into the ceiling, a small external IR eye is included. Also included is a 12volt trigger input, this allows the screen to be activated from any projector or surround sound amp with a 12volt output. A 10m mono mini jack cable is available on request to connect the screen to a 12volt output device.

Other features and measurements
Just like televisions, projector screens are measured in imperial feet and inches. The screen is measured by the width of the material from left to right. The standard sizes are 7ft, 8ft and 9ft. The viewable area is the white part of the screen which is slightly smaller due to the surrounding black borders.

All In ceiling electric projector screens come with a large black border, which can be adjusted with the allen key supplied with the screen.
7ft Electric Screen comes with a 800mm Black border
8ft Electric Screen comes with a 630mm Black border
9ft Electric Screen comes with a 450mm Black border

Superior Projection Screen Material
The quality of material is the most important aspect of any projection screen. Most screens on the market will use a very basic compressed cloth type material resulting in a creased surface and poor contrast performance.

The Cyber Series projection screens use a US manufactured high quality multi ply material with a high contrast and low gain of 1.1. The Projection screen material is tear resistant, fireproof, wrinkle proof and is designed to hang perfectly flat. The centre layer is a glass fibre net producing a flex rate of less than 1% compared with the industry average of 33%. The front layer optimises contrast and reflectivity while a black PVC backing prevents light leakage and helps retain a uniformly flat projection surface.

Size Viewable Area Diagonal Cut Out Size L x W x D Dimensions
7ft Wide 2037 x 1145mm 92" 2435 x 158 x 170 acrobat-icon
8ft Wide 2347 x 1320mm 106" 2750 x 158 x 170 acrobat-icon
9ft Wide 2657 x 1494mm 120" 3055 x 158 x 170 acrobat-icon

All In ceiling screens come in a 16:9 format

Click here for instructions
