Grandview Home Cinema Projector Screens

We hold one of the biggest stock of projection screens in the UK, all for next day delivery to you or to site. From 7ft manual pull downs, to 150” diagonal fixed frame acoustic designs. We even stock Tab Tensioned and in-ceiling recessed screens with motorised trap doors!

All electric screens have built in 12volt trigger, IR and RS232 control. Material is tested and approved by ISF (Imaging Science Foundation).

Grandview 16:9 Inceiling Tab Tensioned Screen

Grandview 16:9 Inceiling Projector Screen

Grandview 16:9 Inceiling Tab Tensioned Electric Projector Screen

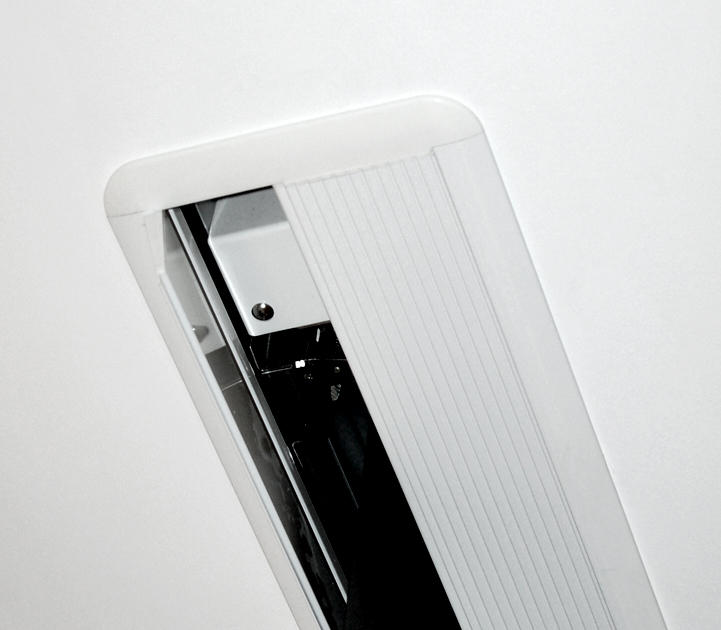

The Grandview Cyber series In-ceiling tab tensioned screen uses the same quality material used on the standard tensioned screens as well as featuring the IR remote and 12volt trigger of the. The unusually quiet operation is due to the unique way that the motor section of the housing is separated from the ceiling section of the housing by a rubber seal. This stops any vibration travelling through into the ceiling void, amplifying the sound. An issue found with other In-ceiling designs. This along with the trap door mechanism makes this screen the perfect discreet option for projection.

Built in Infra-Red Remote Control and Projector Trigger
All Grandview Cyber electric screens feature built in infra-red remote control and come with a simple hand held remote. The IR receiver is located on the front of the curved case but should the screen be installed behind a pelmet or recessed into the ceiling, a small external IR eye is included. Also included is a 12volt trigger input, this allows the screen to be activated from any projector or surround sound amp with a 12volt output. A 10m mono mini jack cable is available on request to connect the screen to a 12volt output device.

Other features and measurements
Just like televisions, projector screens are measured in imperial feet and inches. The screen is measured by the width of the material from left to right. The standard sizes are 7ft, 8ft and 9ft. The viewable area is the white part of the screen which is slightly smaller due to the surrounding black borders.

All In ceiling electric projector screens come with a 40cm large black border, which can be adjusted with the allen key supplied with the screen.

Superior Projection Screen Surface

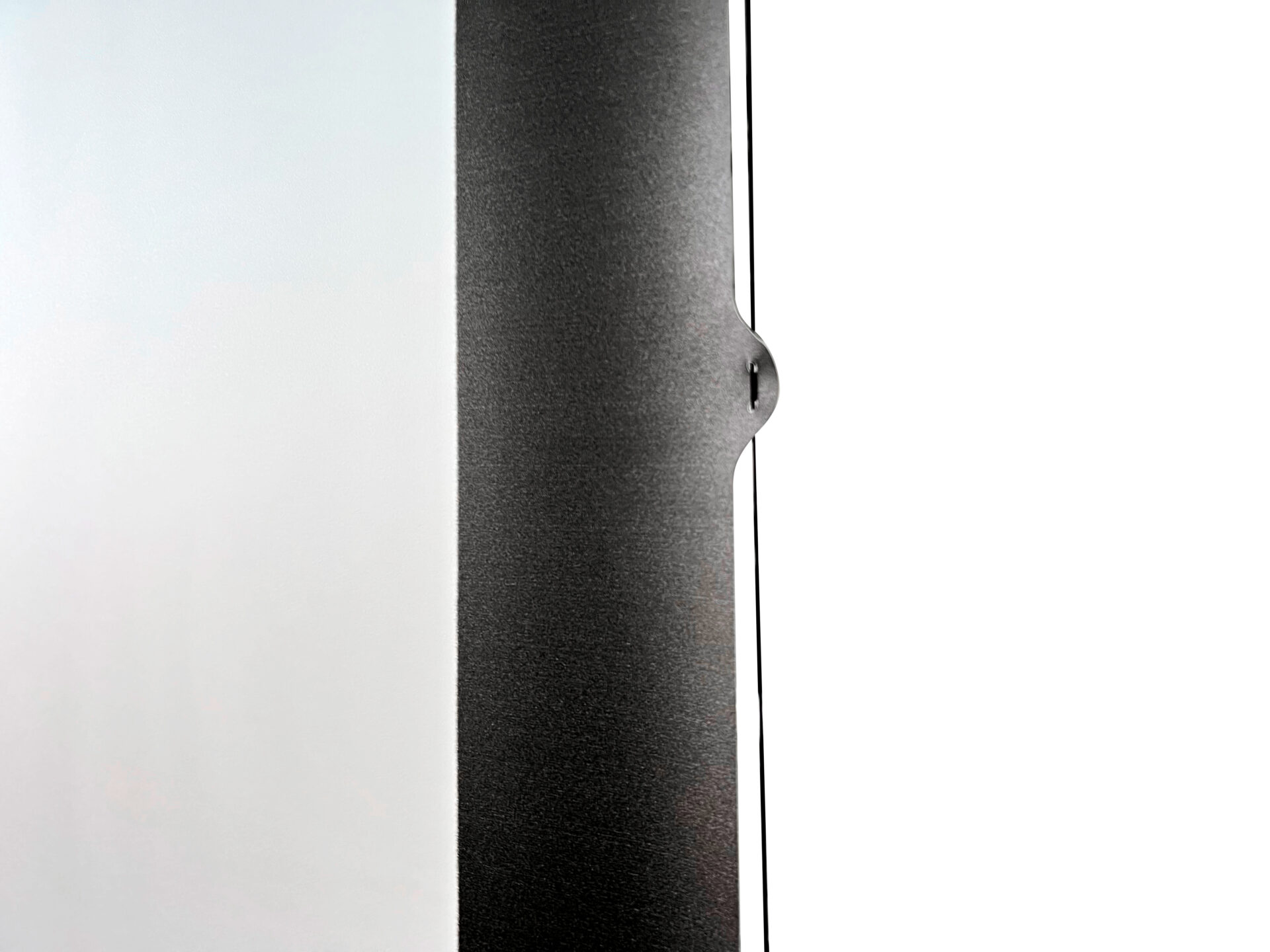

The material on a Tab Tension screen is not only pulled down by the weight of the bar but also from the left and right side by a Nylon string. The string is periodically connected to the material via small “Tabs”, hence the name Tab Tension.
Unlike a standard screen, a Tab Tension screen has a flexible material so that it can be pulled taught from all sides. The Grandview Cyber screens have a unique ratchet mechanism at each end of weighted bar so that the tensioning strings can be easily adjusted. The US made material is optimised for home cinema use, producing a high contrast and uniform reflectivity. A black PVC backing prevents light leakage so that the screen can be positioned in front of a window

Motor Adjustments
How to adjust Type A motor for standard surface and in-ceiling screens up to and including 138″.
Tab tensioned surface and in-ceiling screens upto 120″ (Motor Code AACW) – Click Here

How to adjust Type L motor for standard surface and in-ceiling screens above but not including 138″.
Tab tensioned surface and in-ceiling screens above and not including 120″ (Motor Code ALCW) – Click Here

Old screen motors – Click Here
